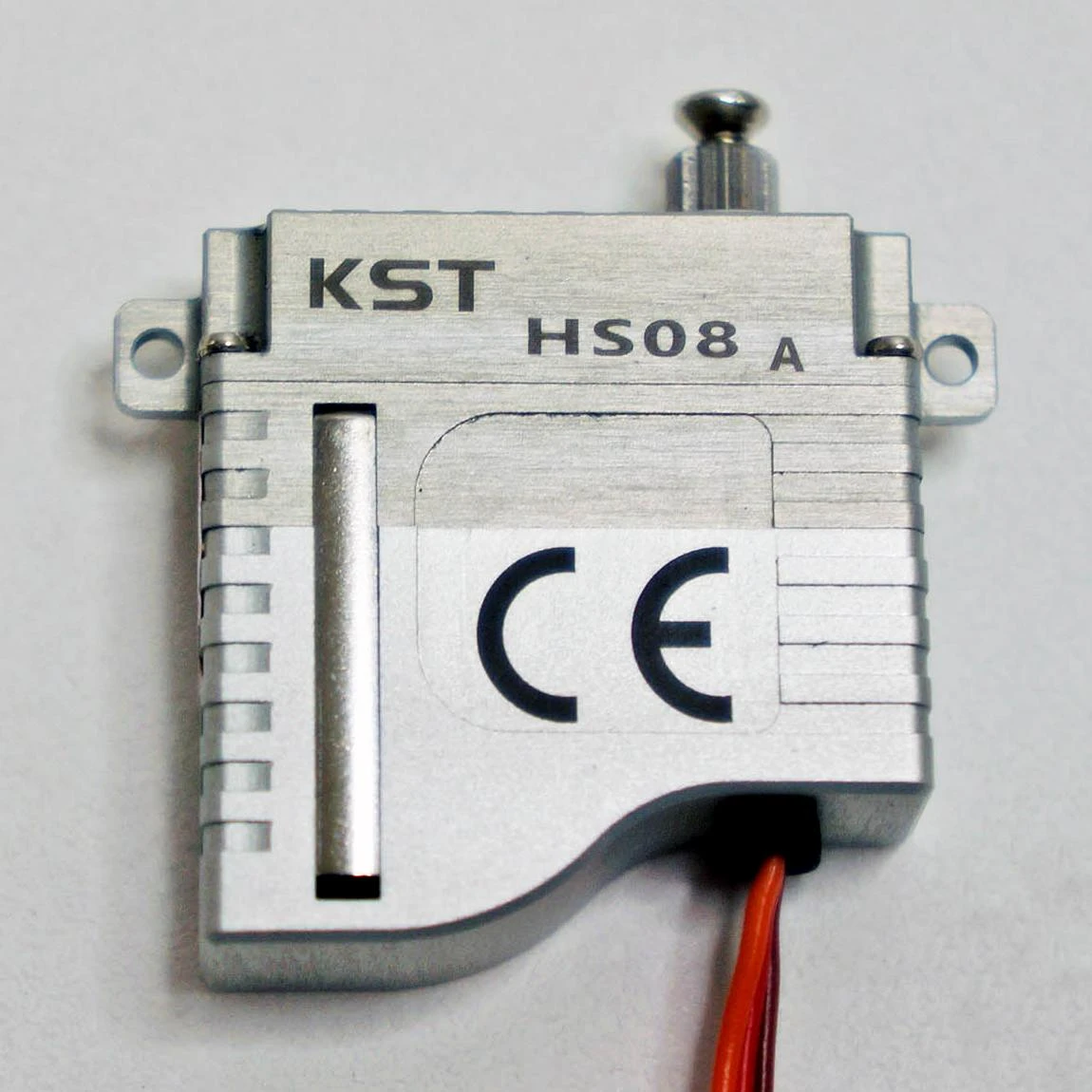

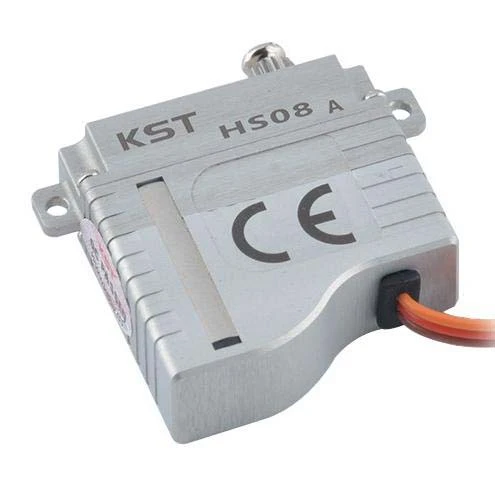

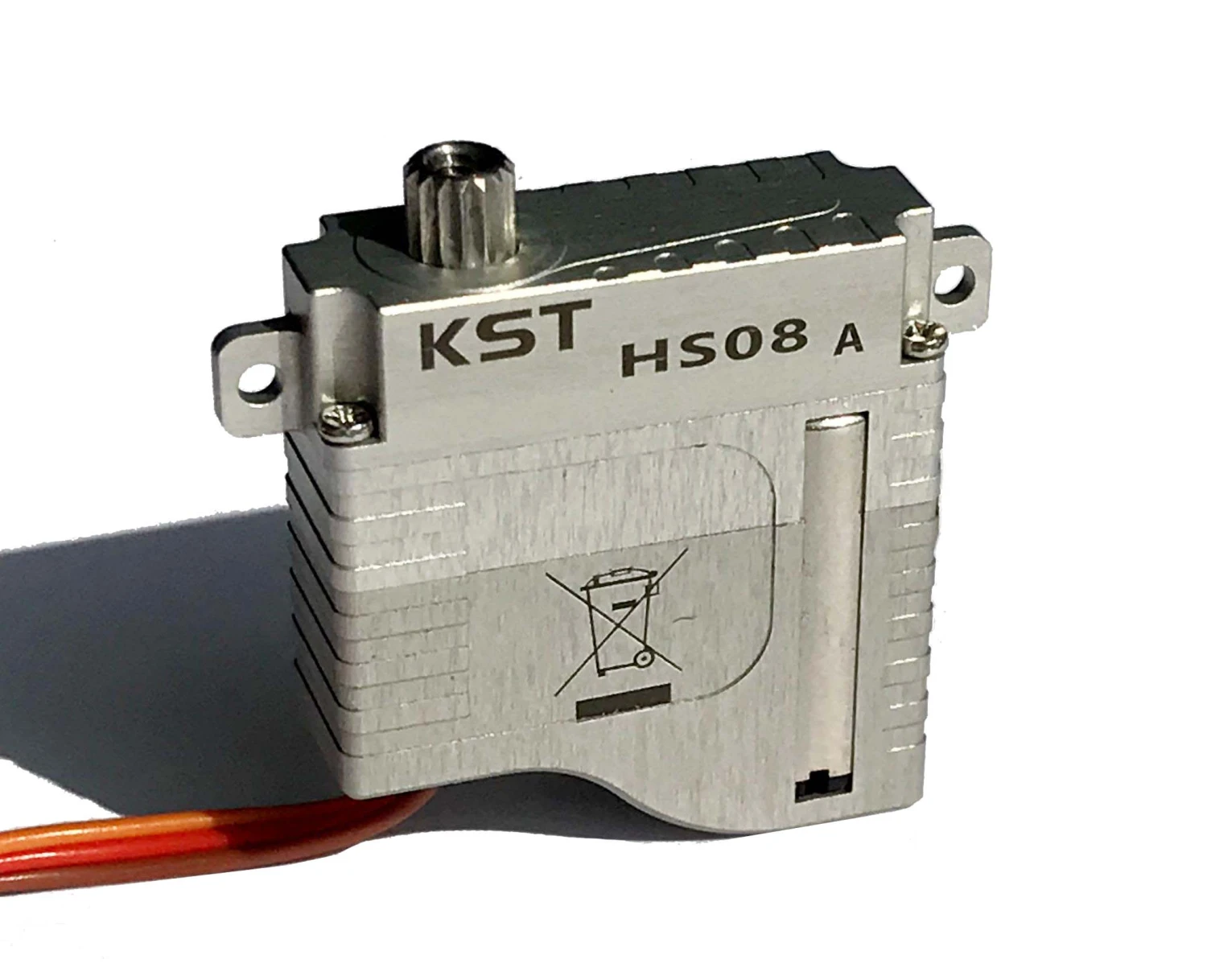

KST HS08A Wing Servo – 5.2Kg.cm 0.11s 11.0g 8mm

KST delivers once again with the KST HS08 series competition servos for F5J glider pilots and soaring enthusiasts who demand the best! The all new HS08 are almost as compact as the much loved KST X08 series and offer power and performance levels approaching that of the X10 Mini servos in an 8 mm thick case. The slim 8mm thick casing is crafted from 7075 aluminium alloy, so not only do these servos look fantastic but they are also very rigid and robust.

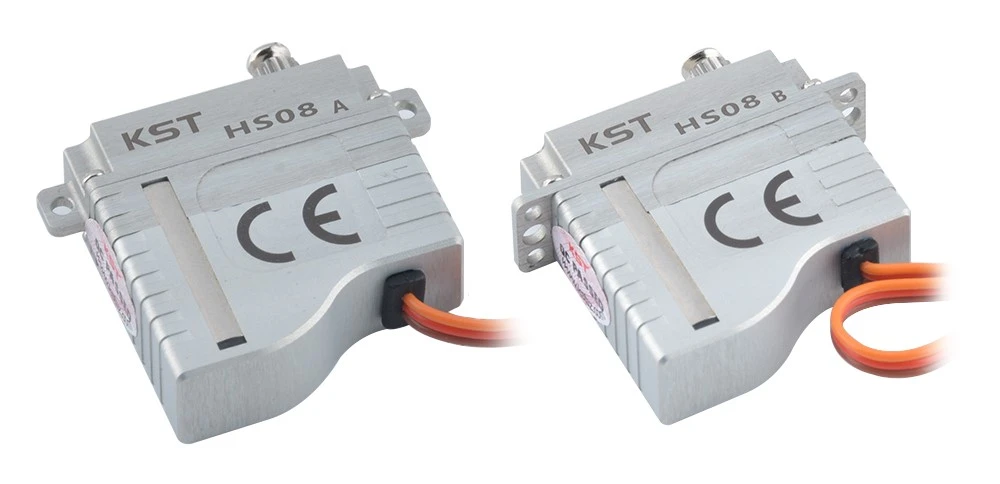

The HS08 series are available with wing mounting tabs (A version) or normal mounting tabs (B version), to allow convenient installations in fuselages or wings or even tail surfaces. This is the KST HS08A, the wing mount version

The KST HS08A has a hardened steel drive train and a coreless motor capable of running all the way from 3.8V to 8.4V (1S to 2S LiPo) making these WV (wide voltage range) servos will deliver the power and reliability you need.

KST HS08A Features
Compact and light weight design
Excellent torque and speed
Wide 1S to 2S voltage range
Designed for high performance RC Gliders
Excellent heat dissipation
Ultra slim 8mm body
7075 Alloy casing
Hardened Steel gears
Wing mounting tabs

KST HS08A Wing Servo Specifications

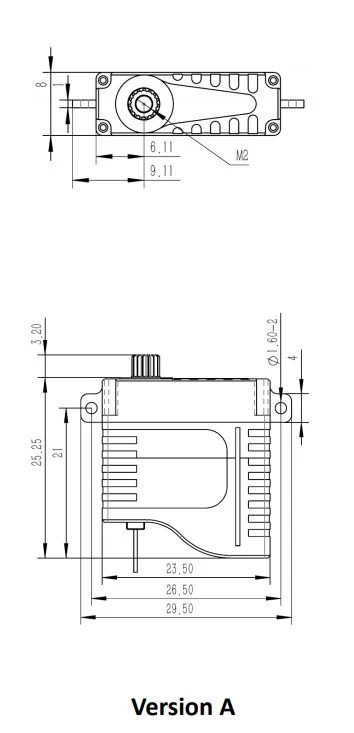

Body dimensions	23.5 mm wide x 8.0 mm thick x 25.3 mm high	0.93″ wide x 0.31″ thick x 1.00″ high
Max dimensions	29.5 mm wide x 8.0 mm thick x 29.0 mm high	1.16″ wide x 0.31″ thick x 1.14″ high
Stall torque (3.8V)	2.8 Kg.cm	39 oz.in
Stall torque (6V)	4.5 Kg.cm	62 oz.in
Stall torque (7.4V)	5.2 Kg.cm	72 oz.in
Weight	11 g	0.39 oz
Lead length	15 cm	5.9 in
Operating speed (3.8V)	0.21 sec/60°
Operating speed (6V)	0.13 sec/60°
Operating speed (7.4V)	0.11 sec/60°
Operating voltage	3.8V to 8.4V
Operating temperature	-20 to +65 °C
Bearings	2 ball bearings
Gear material	Hardened Steel
Case material	7075 aluminium alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	1000 – 2000 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

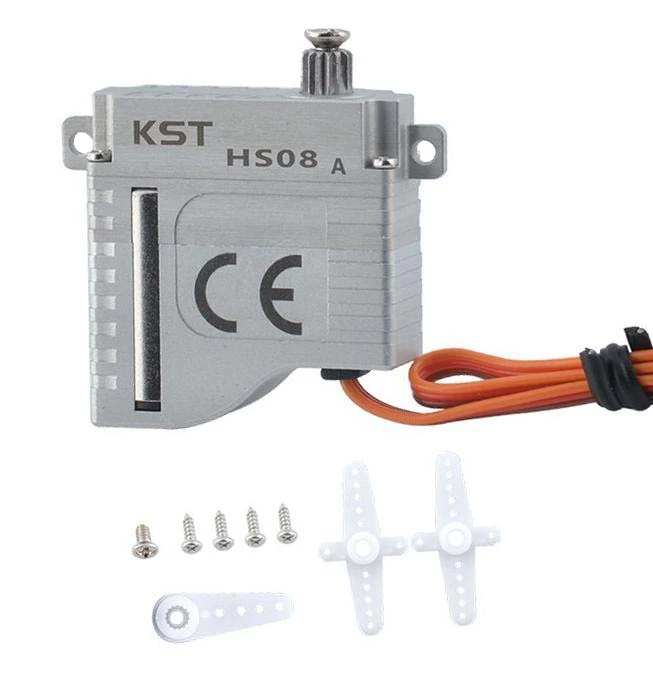

Supplied accessories	3 output arms, 2 arm retaining screws, 4 mounting screws
Optional accessories	Pulley For KST X08, KST X08 Servo Arm Set, Frame with plain bearing for the KST X08, Integrated Drive System/Mono for KST X08, VM Spring Loaded Pulley Set for X08

Stall Current: 0.68A
Continuous rated Current: 0.25A
