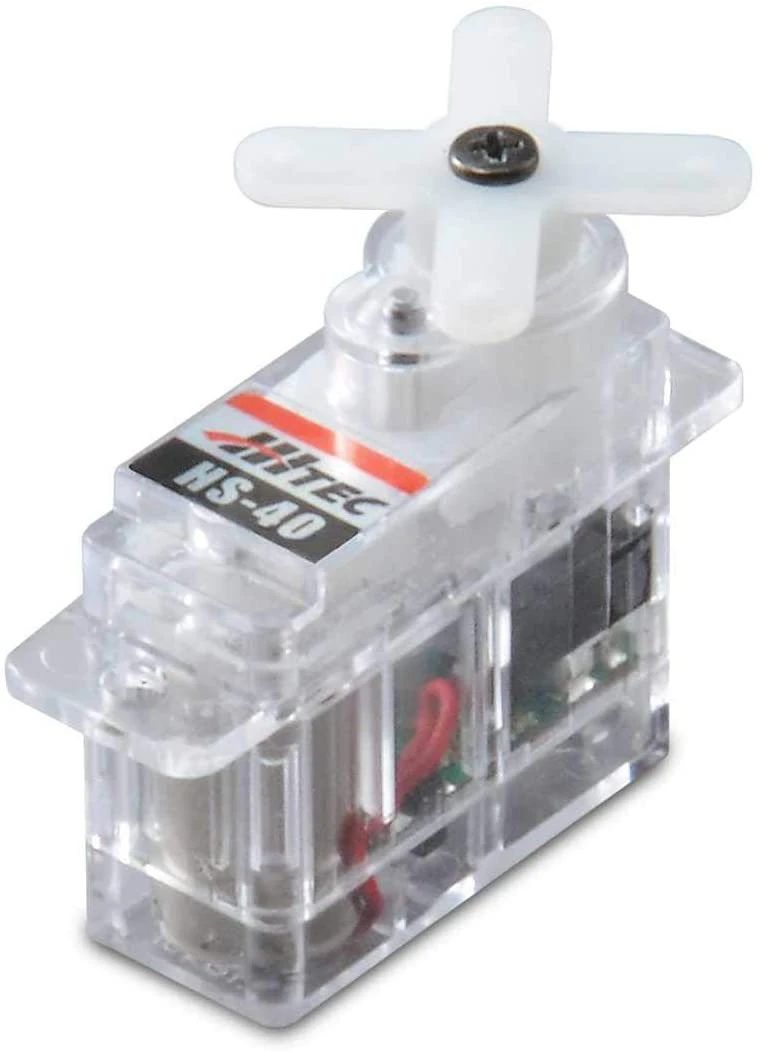

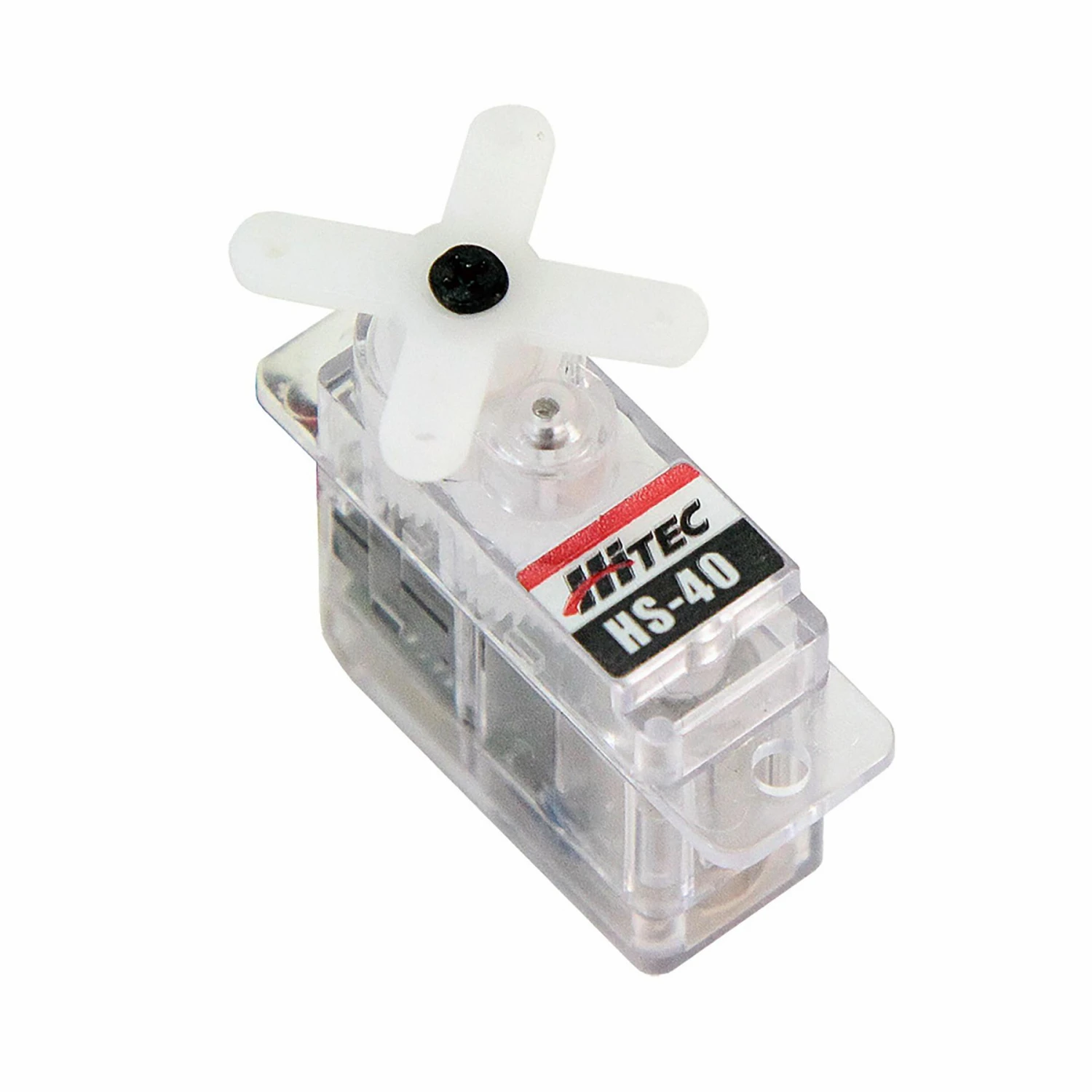

Hitec HS-40 Nano Servo Servo – 0.8Kg.cm 0.10s 5.2g 9mm

The Hitec HS-40 servo is an economic yet good quality alternative nano servo. Weighing just 5.2 g and with a torque of 0.6 Kg.cm @ 4.8V this analogue servo is suitable for models weighing up to about 500 g.

Hitec HS-40 Nano Servo Servo Specifications

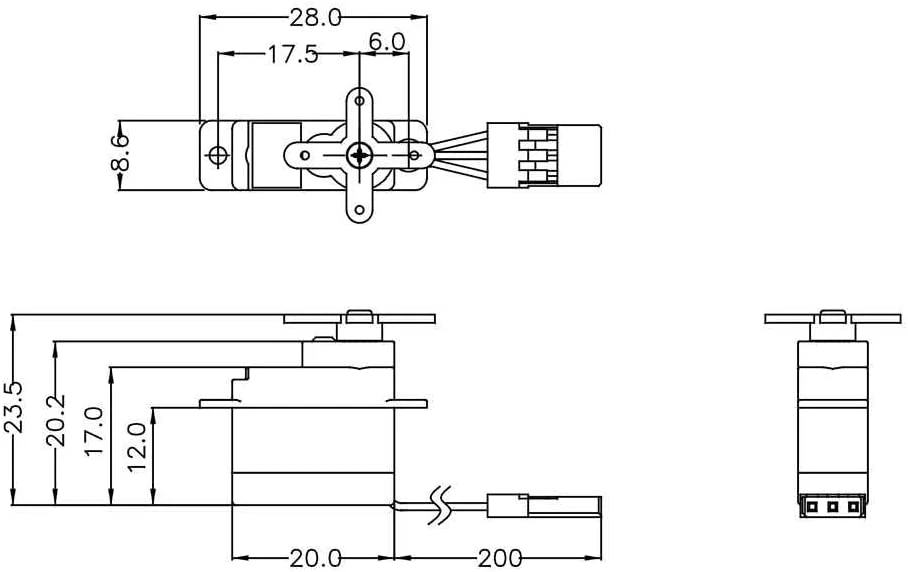

Body dimensions	20.0 mm wide x 8.6 mm thick x 17.0 mm high	0.79″ wide x 0.34″ thick x 0.67″ high
Max dimensions	2.0 mm wide x 8.6 mm thick x 23.5 mm high	0.08″ wide x 0.34″ thick x 0.93″ high
Stall torque (4V)	0.4 Kg.cm	6 oz.in
Stall torque (4.8V)	0.6 Kg.cm	8 oz.in
Stall torque (6V)	0.75 Kg.cm	10 oz.in
Weight	5.2 g	0.18 oz
Lead length	19 cm	7.5 in
Operating speed (4V)	0.15 sec/60°
Operating speed (4.8V)	0.12 sec/60°
Operating speed (6V)	0.1 sec/60°
Operating voltage	3.8V to 6V
Operating temperature	0 to 40 °C
Bearings	Plain
Gear material	Nylon
Case material	Nylon
Motor type	Cored
Working frequency	0 Hz
Dead band/resolution	5 µs
Pulse width for ± 60º	1000 to 2000 µs
Digital	No
Programmable	No
Position feedback	Potentiometer

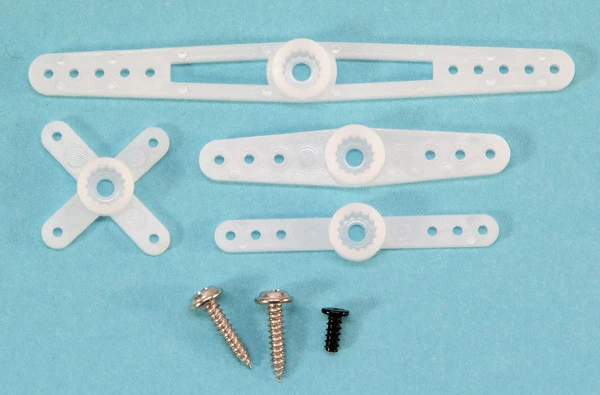

Supplied accessories	5 plastic output arms, 2 arm retaining screw, 2 mounting screws
Optional accessories

Supplied loose – no box.
