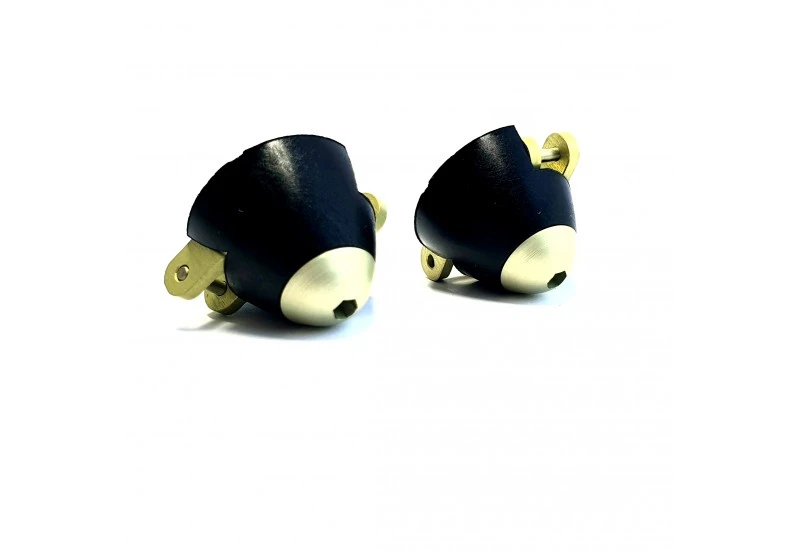

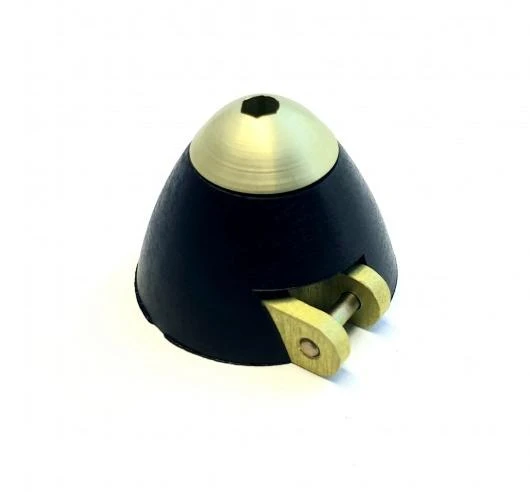

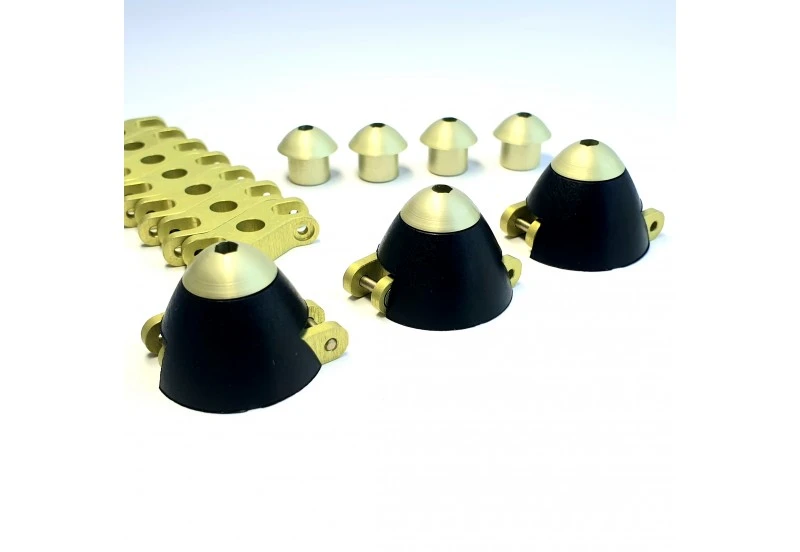

CN Models 25mm Spinner For M5 Shafts

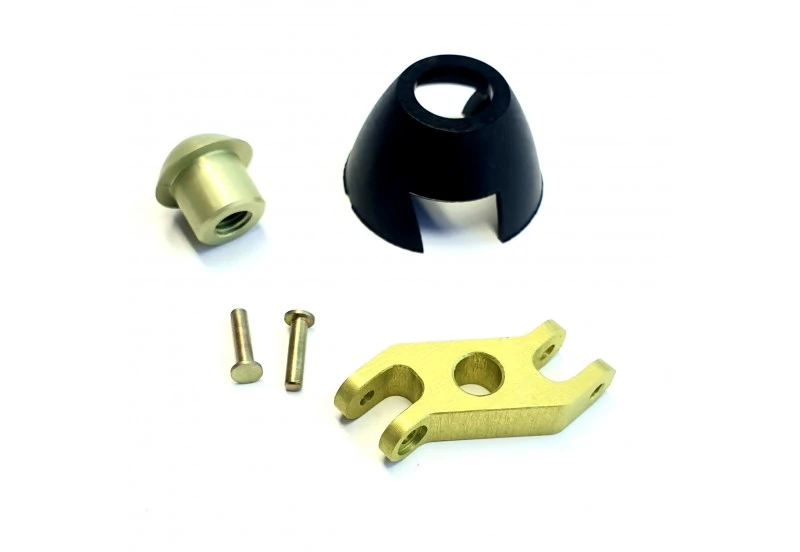

The CN Models 25/5 Spinner is a great new spinner for small F5K class type electric gliders. It has a diameter of 25 mm and is suitable for motors with a M5 threaded 5mm output shaft. The yoke/hub is beautifully CNC machined from aluminium alloy and anodised to increase the surface hardness and corrosion resistance. The black shock proof cone is molded from a glass/nylon composite.

The yoke has been designed to help ensure that the prop blades fold closer to the fuselage to minimise drag when gliding.

The spinner is designed to work best with drone motors with M5 threaded motor shafts. It is attached to the motor shaft by tightening the M5 threaded front bolt using the included allen key.

CN Models 25/5 Spinner Specification
Diameter	25 mm
Motor shaft	5 mm (threaded M5)
Distance across hinge pins	19 mm
Prop hinge pin diameter	2 mm
Prop blade root width	5 mm
Weight	5.1 g
