22mm – 9mm X 1m Tapered Carbon Boom

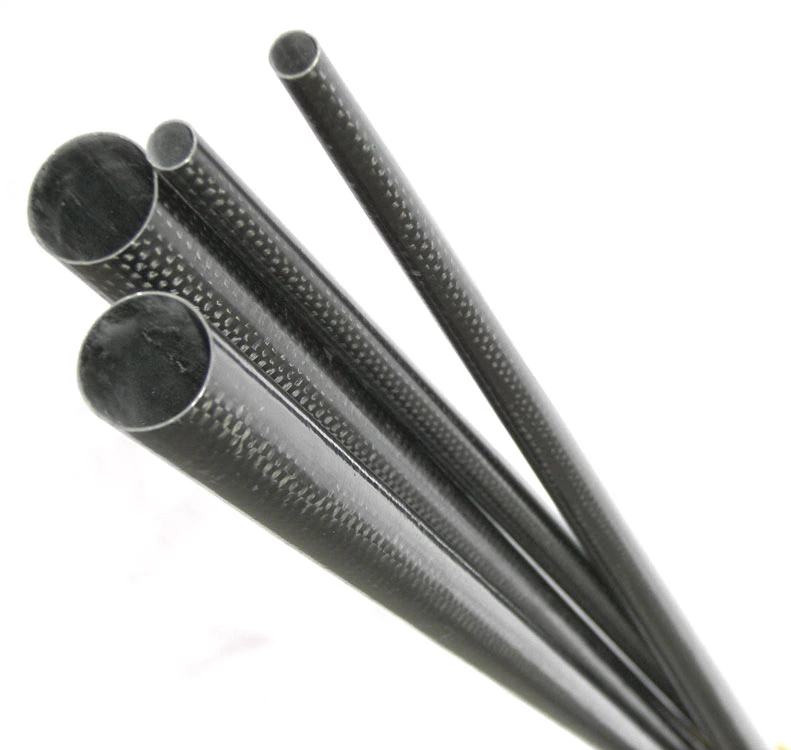

This 100 cm long lightweight carbon fiber boom tapers from 22.0 mm diameter to 9.0 mm diameter, with a wall thickness of 0.4 mm. It is made from high modulus carbon fiber wound onto a tapered form, encased in an epoxy matrix, and cured at high temperature. This high quality carbon boom (hollow tapered tube) is extremely rigid and strong, yet only weighs 28 g.

If cut down to less than the 90 cm limit for a legal UK Royal Mail postal tube this item will be sent by first class post, or Airmail post for overseas orders. If left full length it will be sent by courier, increasing the delivery cost.

Select the required length using the radio buttons below the price.

22.0 mm tapering to 9.0 mm Carbon Fiber Boom Specification
Wide end outside diameter	22.0 mm
Narrow end outside diameter	9.0 mm
Wall thickness	0.4 mm
Weight	28 g
Length	100 cm
Uses	Tailbooms
Structural material	HM carbon fibers
Matrix	Epoxy resin
Carbon content	Approx. 58%
Packing type	Rigid-usually sent in a postal tube

This boom fits Kristoffair’s M2A-e Electric glider fuselage pods and AVA tailplane V mounts.
