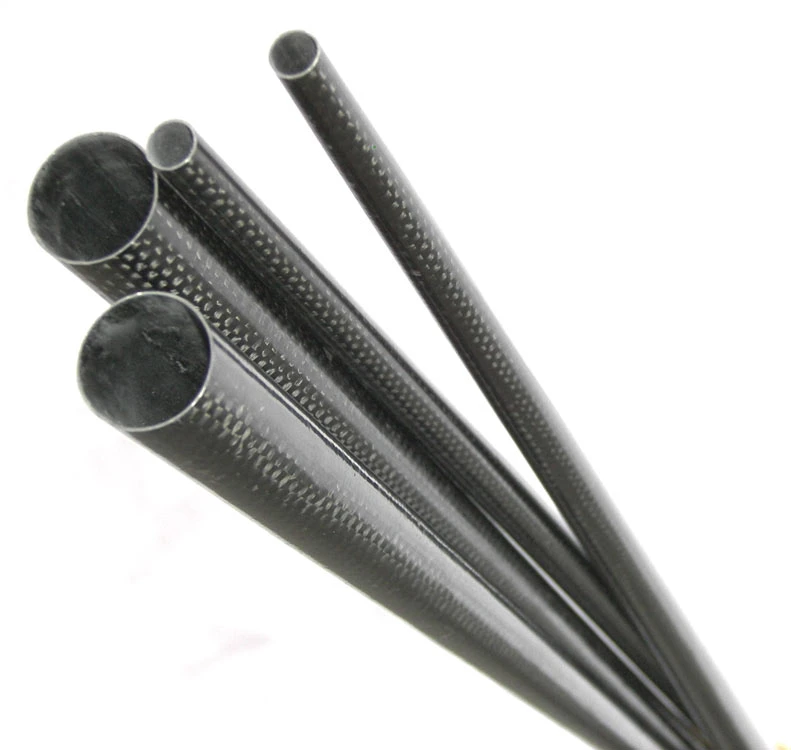

18.3mm – 8mm X 1.1m Tapered Carbon Boom

This 110 cm long lightweight carbon fiber boom tapers from 18.3 mm diameter to 7.7 mm diameter, with a wall thickness of 0.3 mm. It is made from high modulus carbon fiber wound onto a tapered form, encased in an epoxy matrix, and cured at high temperature. This high quality carbon boom (hollow tapered tube) is extremely rigid and strong, yet only weighs 23.5 g.

If cut down to less than the 90 cm limit for a legal UK Royal Mail postal tube this item will be sent by first class post, or Airmail post for overseas orders. If left full length it will be sent by courier, increasing the delivery cost.

Select the required length using the radio buttons below the price.

18.3 mm tapering to 7.7 mm Carbon Fiber Boom Specification
Wide end outside diameter	18.3 mm
Narrow end outside diameter	7.7 mm
Wall thickness	0.3 mm
Weight	23.5 g
Length	110 cm
Uses	Tail booms
Structural material	HM carbon fibers
Matrix	Epoxy resin
Carbon content	Approx. 58%
Packing type	Rigid-usually sent in a postal tube

This boom is ideal for lightweight low drag tail booms, especially for discus launched gliders (DLG), thermal gliders, electric, F5J and FF models.

Suitable for use with our Blaster2 V mounts. Note the weight is for the full 110 cm length. When cut down to a shorter length suitable for a DLG the boom weighs about 17g.
