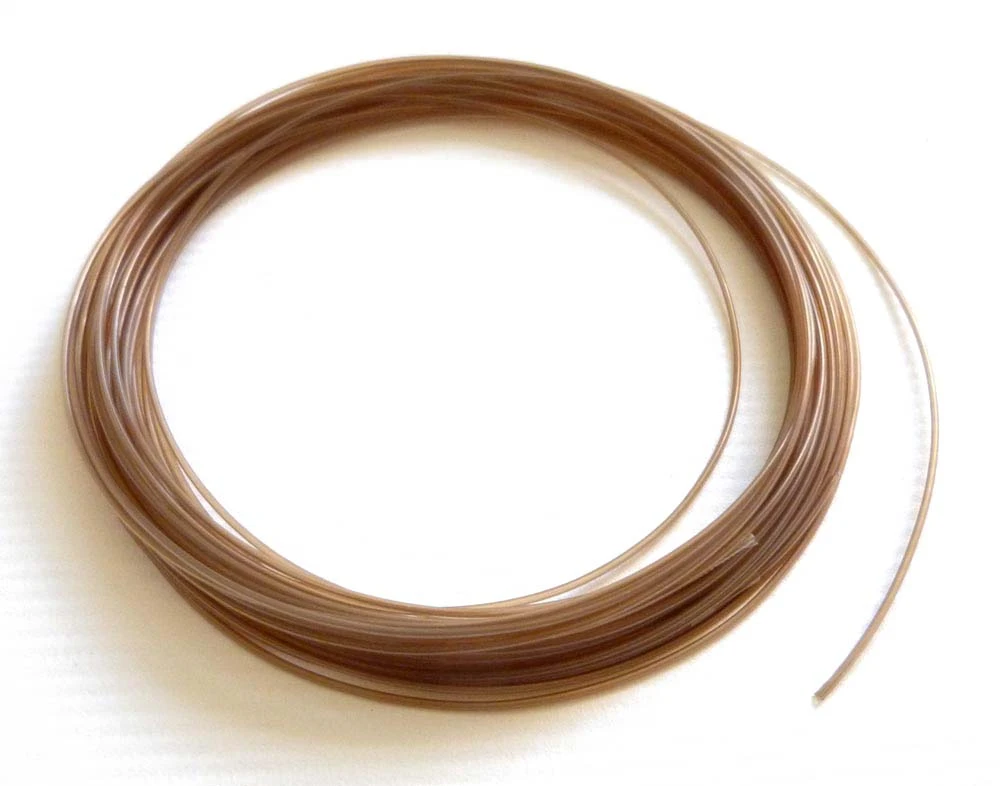

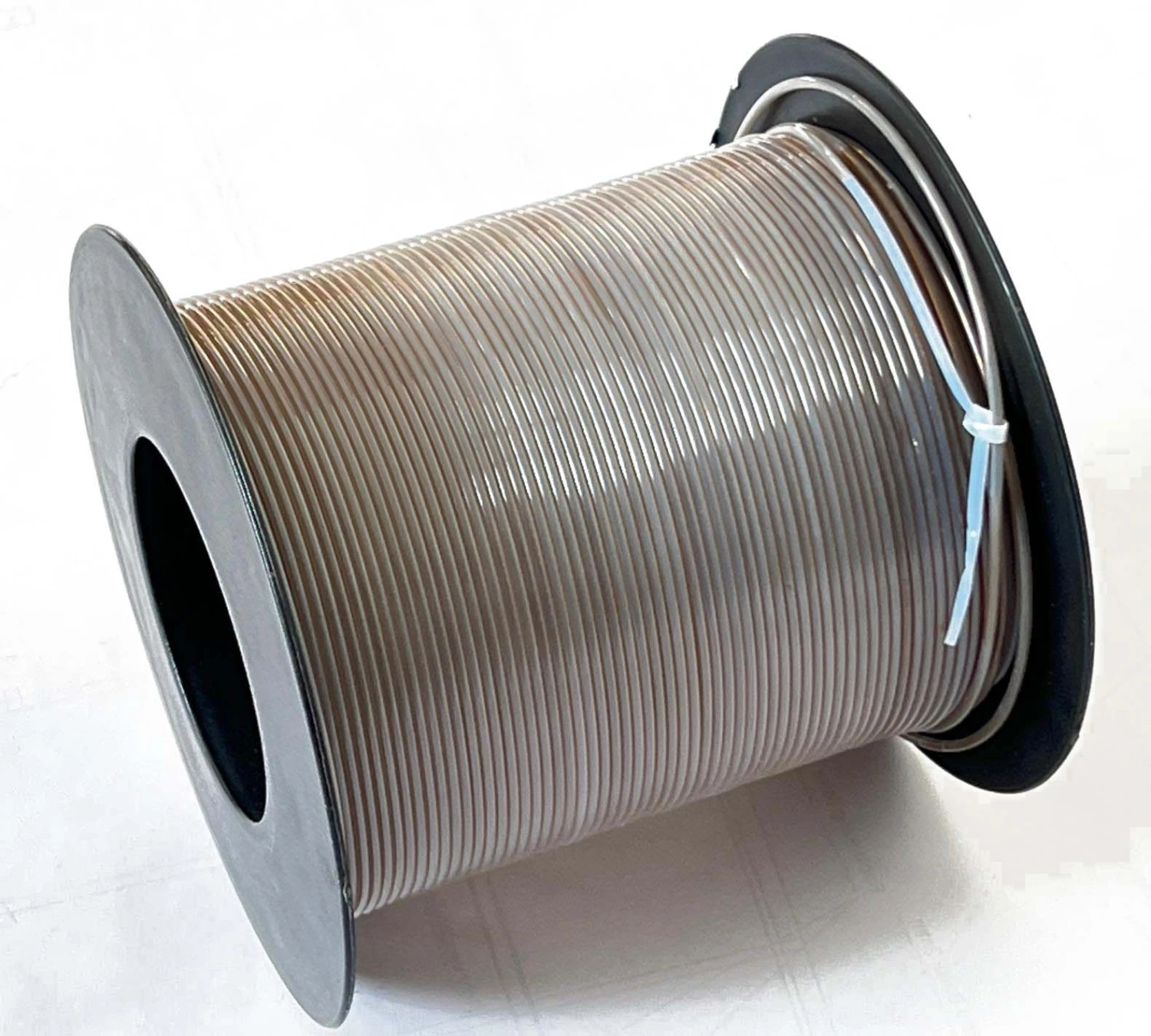

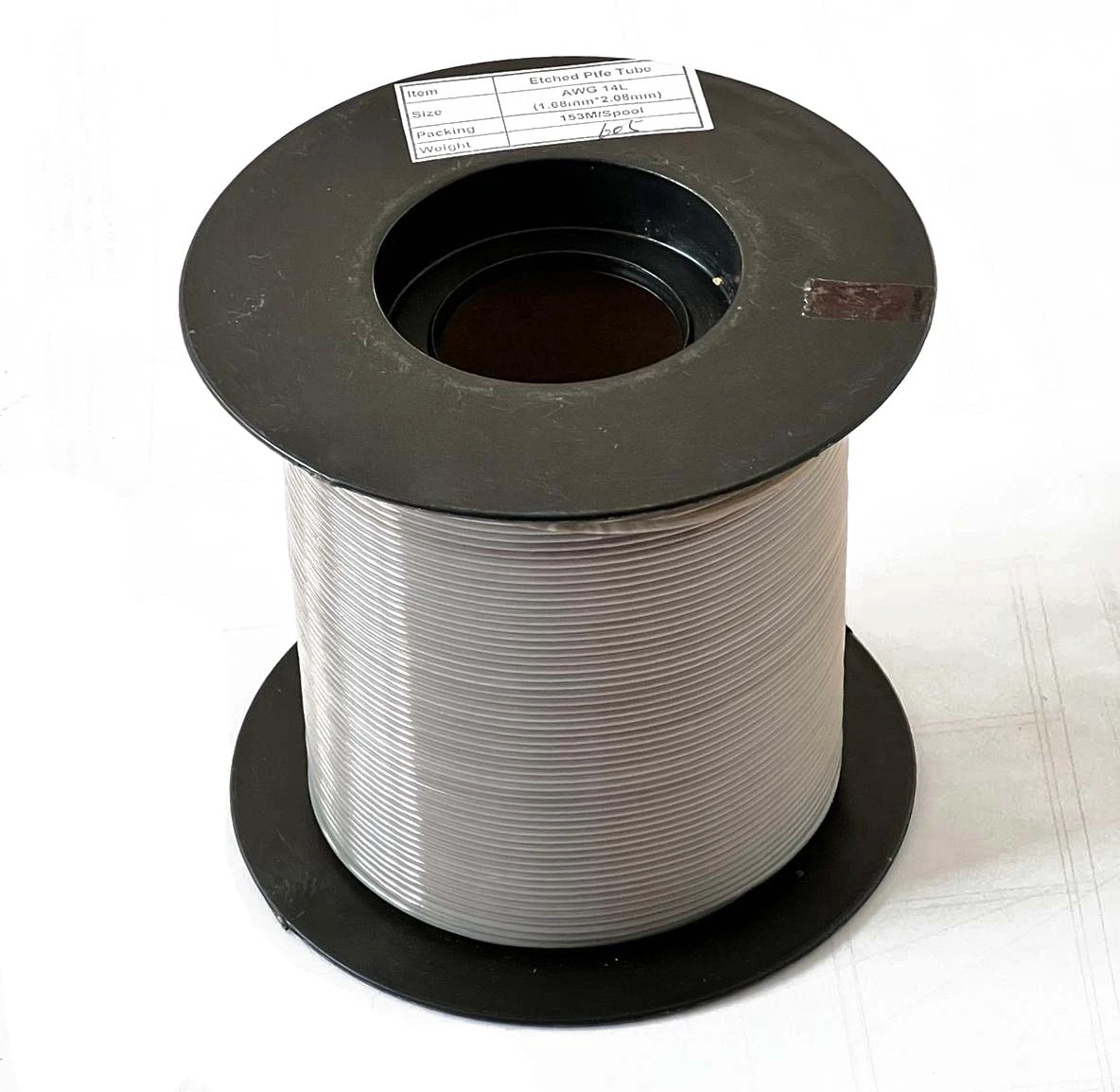

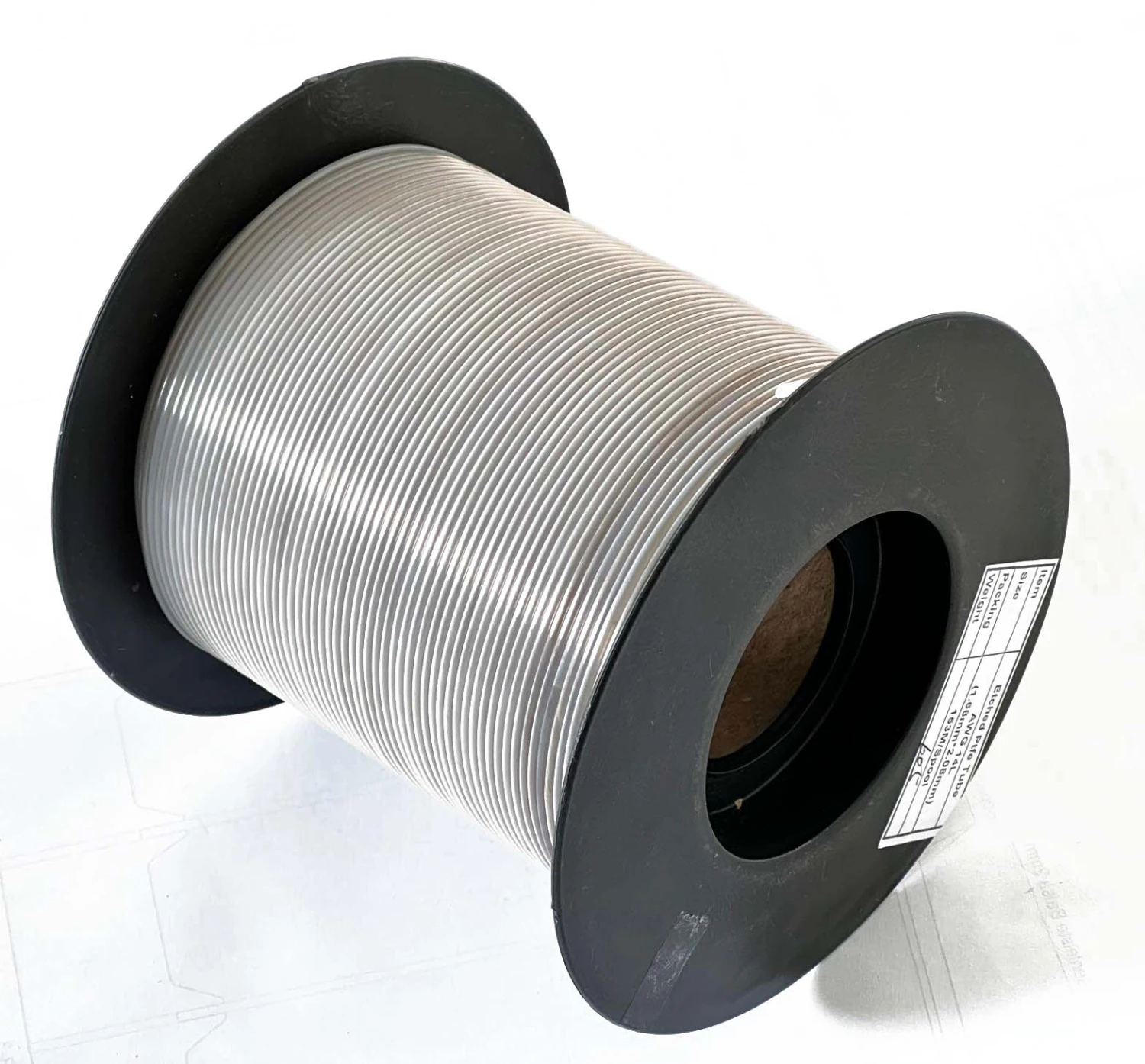

1 Roll (305m) 22L Etched PTFE

305m low friction 0.71 mm ID PTFE tube suitable for pushrod outers on discus launched glider and other small models. Also suitable for a large range of engineering and industrial uses.

This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.

Can be stretched to 2 times the original length to reduce the weight per meter, and tune the inside diameter to be a perfect fit for the inner pushrod. Sold by the meter. Enter a quantity of 3 for a 3m roll.

22L Etched PTFE Tube Specification
Inside diameter	0.71 mm	0.028 in
Wall thickness	0.15 mm	0.006 in
Outside diameter	1.05 mm	0.041 in
3X Stretched ID	0.46 mm	0.018 in
Suggested pushrod inner	0.5mm Carbon Rod	24 SWG or thinner Piano or SS wire
US size	22 AWG L type (Lightweight)
Weight per m	1.0 g per meter
Length of tube	305 m
Number of joins	5 max
